[KAISER+] M1590TNK Product Information

Vertical Digital Door Lock for Sliding & Swing Doors

📘 Product Overview

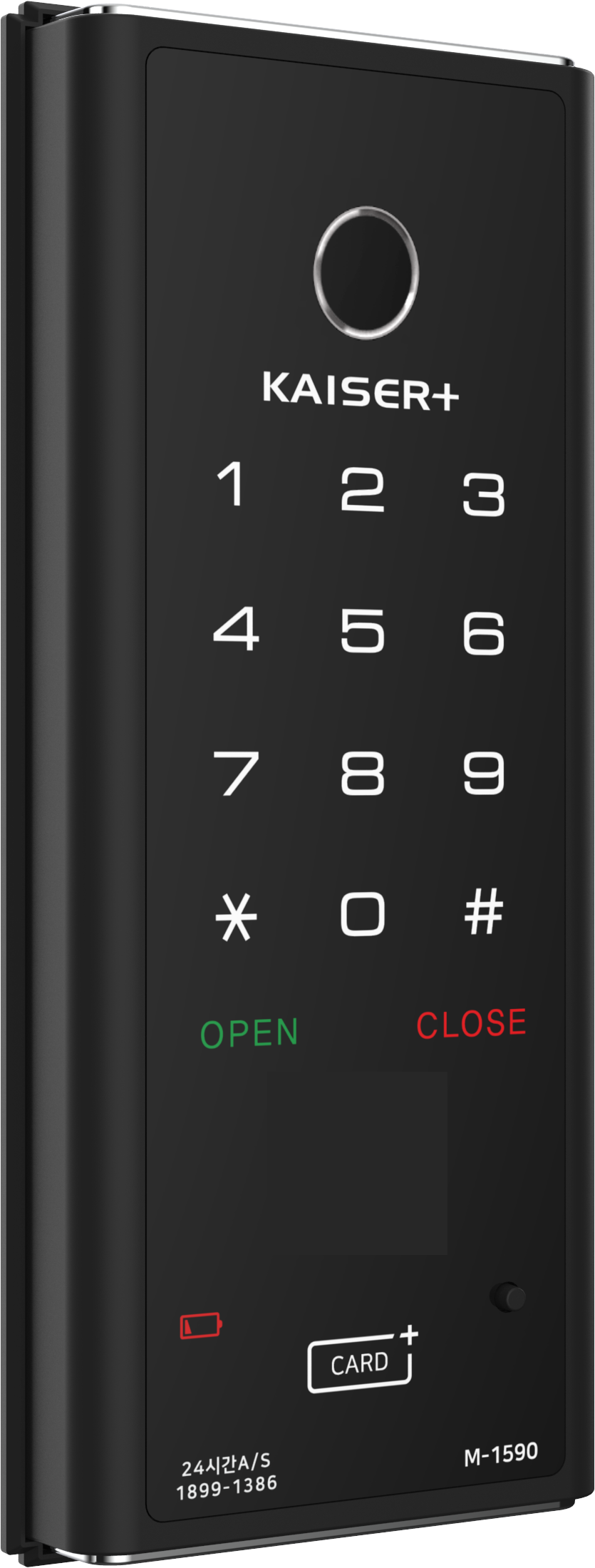

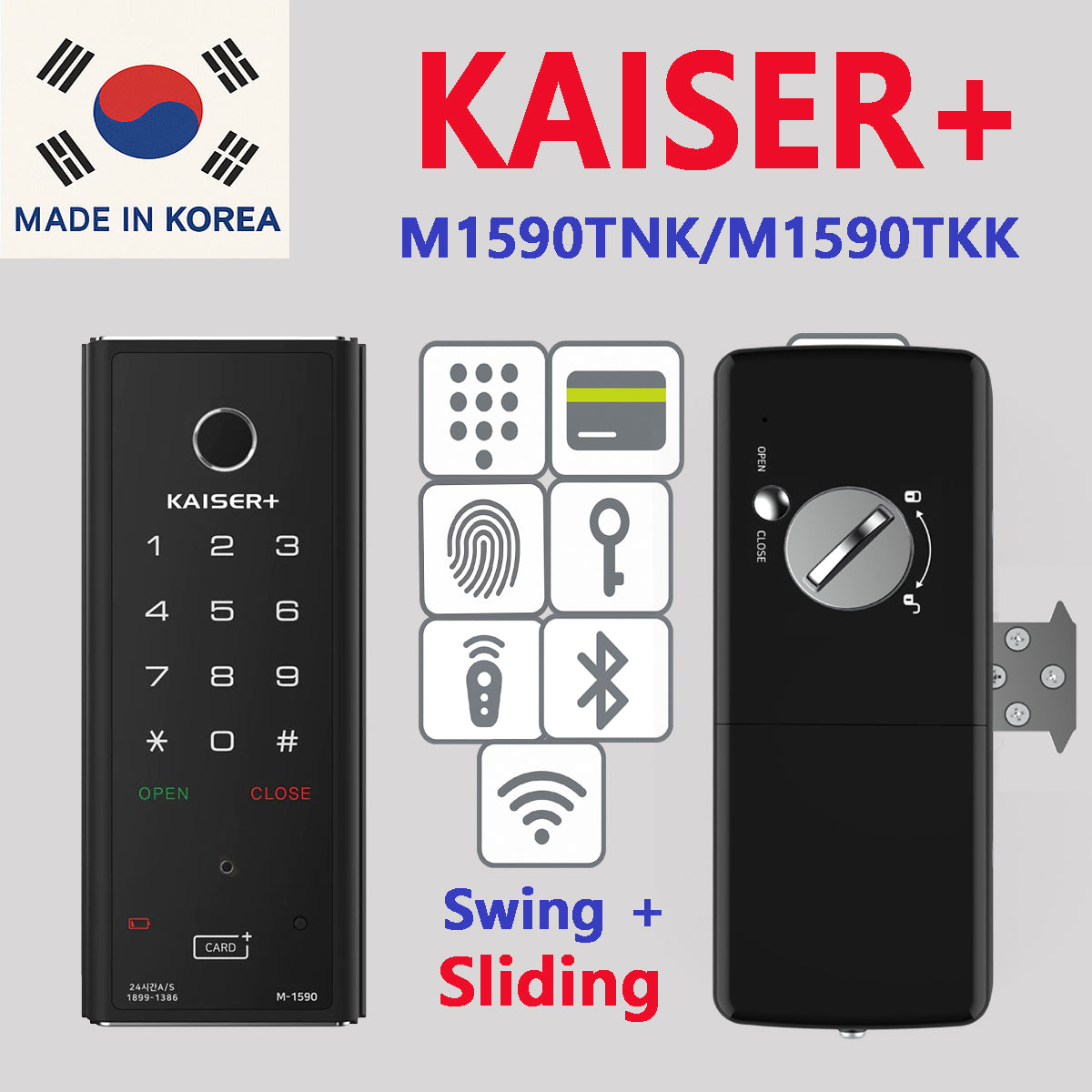

The KAISER+ M1590TNK is a smart digital door lock designed for sliding doors, swing doors, and framed glass doors. It supports multiple access methods, including PIN code, RF card, fingerprint (selected models), smartphone, and remote control, providing convenient access and enhanced security.

📦 Product Lineup

Common Options

• Remote Control
• Bluetooth (BLE)
• Bluetooth + Wi-Fi
• Wi-Fi Box (433MHz)

Note: For emergency key models (M1590TKK), please select the door opening direction based on the outside view:

• L = Left Opening
• R = Right Opening

📡 Smart Features

📱 PhonePass+

Korean-Developed App

📡 Available Connectivity Options

• Bluetooth (BLE)
• Bluetooth + Wi-Fi

✨ Features

• 📲 Smartphone Remote Control
• 📶 Bluetooth and Wi-Fi Connectivity
• 🔢 Temporary PIN Code Generation
• 📋 Access Log Monitoring

⚠️ Important

PhonePass+ cannot be used with the Synchronization function of a KAISER+ HDB Gate Lock.

📡 Wi-Fi Box (433 MHz)

📱 Compatible App

• eWeLink

✨ Features

• 🌐 Remote Control from Anywhere
• 🎛️ Includes Two 433 MHz Remote Controls
• 🔗 Supports Synchronization with a KAISER+ HDB Gate Lock

⚠️ Important

To synchronize your KAISER+ HDB Gate Lock with the main door lock, you must select the Wi-Fi Box option.

🔗 SYNC System

When paired with a KAISER+ HDB Gate Lock equipped with the optional SYNC Module, the gate lock and main door lock operate together as one system.

Features:

• Unlocking the gate lock automatically unlocks the main door lock.
• One authentication opens both locks simultaneously.
• Provides a more convenient and seamless entry experience.

Notes

• The SYNC function cannot be used together with the Bluetooth (BLE) or Bluetooth + Wi-Fi options.
• A Wi-Fi Box (433MHz) is required to use the SYNC function.

📑 Specifications

Authentication Methods

• PIN Code
• RF Card
• Fingerprint (selected models)
• Mechanical Emergency Key (selected models)

Registration Capacity

• Up to 50 RF Cards
• Up to 100 Fingerprints

🔑 Optional Accessories

• Mechanical Emergency Key (for M1590 Series and above)
• KAISER+ Slim Strike Plate
