[PushPull]KAISER PLUS MS931FSK Premium Digital Push-Pull Door Lock | Euro Large Motise Smart Door Lock with PIN, RFID, Fingerprint, Emergency Key | Luxury Made in Korea Smart Lock | Motise, Remote Control, Wi-Fi & BLE IoT Options

📌 Product Information

MIDAS MS9310FSK – Euro Largel Mortise
(Korea Small Mortise Optional)

🆔 Model: MS9100FSK
🎨 Configuration: Black Body / Gold Handle
      (Silver Handle Optional)

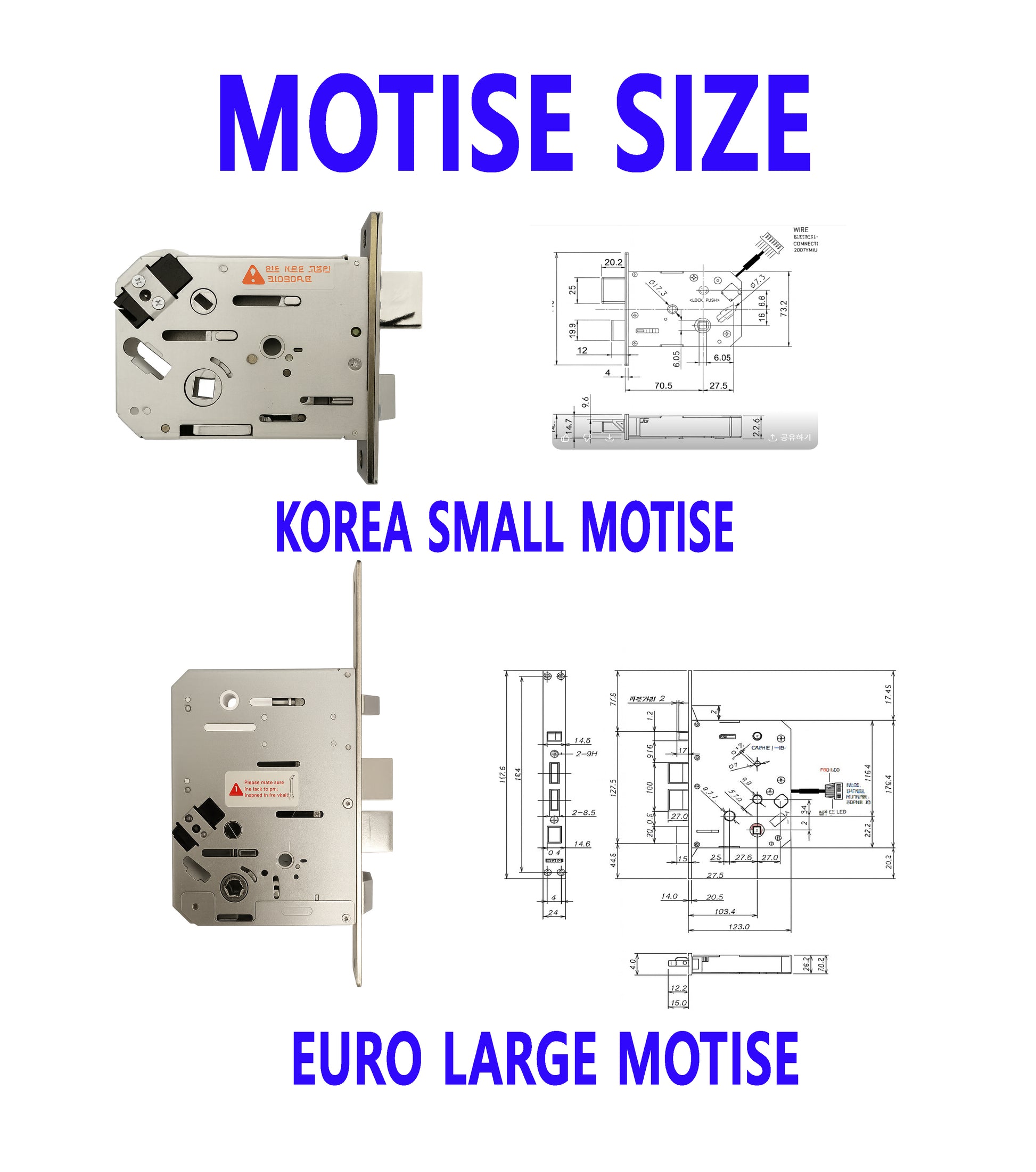

🔩 Mortise Type

✔️ Korea Small Mortise included as standard
➕ Euro Large Mortise – Optional (upgrade option)

🔐 Product Type

• Premium Push-Pull Digital Door Lock

• For Swing-Type Doors Only

🇰🇷 Country of Origin: Made in Korea

📘 Product Overview

✨ High-security smart door lock with a premium modern design
🚪 Optimized for inward-opening swing doors (In-swing doors)

➡️ Operation Direction Guide

• Inside: PULL

• Outside: PUSH

⚠️ For outward-opening swing doors (Out-swing doors),
➡️ please leave a note when placing your order.

🔩 Mortise & Emergency Key

✔️ Korea Small Mortise included as standard
🔄 Euro-type mortise upgrade available as an optional item (price may vary)

🔑 Emergency Mechanical Key

• Used in case of battery depletion or electronic malfunction

• Applicable Model: MS9100FSK

✨ Key Features

🔐 Authentication Methods

• 🔢 PIN Code

• 💳 RFID Card

• 👆 Fingerprint

• 🔑 Metal Emergency Mechanical Key

💾 Storage Capacity

• 💳 RFID Cards: Up to 50 cards

• 👆 Fingerprints: Up to 100 users

🔑 Standard Accessories

• Emergency Mechanical Keys × 2 (included)

• (Master key available for bulk orders)

🔋 Power Supply

• 4 × AA batteries (not included)

📡 Smart & Integration Options (Optional)

📶 Wi-Fi Connection Set — Optional
🎮 Remote Control + Receiver Set — Optional
📹 Video Intercom (Video Phone) Integration Set — Optional
🔩 Euro Large Mortise — Optional

※ The above items are not included in the standard package and must be purchased separately if required.

📱 App Features — When Wi-Fi Option Is Selected

📲 App: eWeLink

• 📜 Access log history

• 🔓📱 Remote lock / unlock via smartphone

📱 App Features — When Wi-Fi Box Is Used (Optional)

📲 App: eWeLink

• 📜 Access log history

• 🔓📱 Remote lock / unlock

• 📡 Supports 433MHz remote control

• ⏱️ One-time temporary PIN
    (built into the door lock itself)

📲 Remote Control Notice (Optional)

🎮 Remote control operation requires
➡️ Remote Control + Receiver Set (Optional)

🛒 Remote set is sold separately

📑 Specifications

🎨 Color

• Black body

• Handle: Gold (standard)

• Black / White handles available upon request

📐 Dimensions

• Exterior Unit: 85(W) × 370(H) × 63(D) mm

• Interior Unit: 85(W) × 370(H) × 73(D) mm

🧱 Material

• Flame-retardant ABS + GI (Galvanized Iron) Steel

🌡 Operating Temperature

• –5°C to 55°C

📦 Package & Weight

📦 Package Size: 50 × 40 × 30 cm
⚖️ Weight: Approx. 4.0 kg

📦 Package Includes (Standard)

📦 Exterior Unit
📦 Interior Unit
🔩 Mounting Bolts
💳 RFID Cards × 2
📘 User Manual
🛠 Installation Guide
