[KAISER+] M1590TKK (L/R)Product Information

Vertical Digital Door Lock for Sliding & Swing Doors

📘 Product Overview

The KAISER+ M1590TKK(L/R) is a smart digital door lock designed for sliding doors, swing doors, and framed glass doors. It supports multiple access methods, including PIN code, RF card, fingerprint (on selected models), metal keys, an optional smartphone, and a remote control, providing convenient access and enhanced security.

📦 Product Lineup

• Bluetooth (BLE)
• Bluetooth + Wi-Fi
• Wi-Fi Box (433MHz)

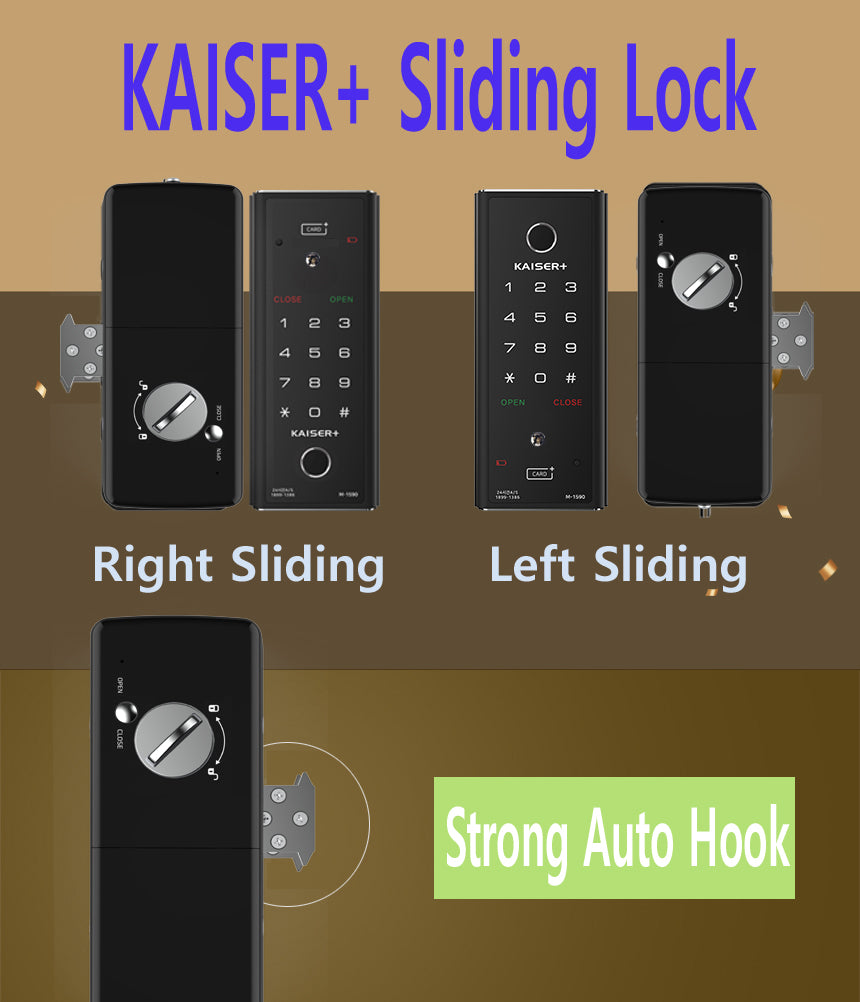

Note: For emergency key models (M1590TKK), please select the door opening direction based on the outside view:

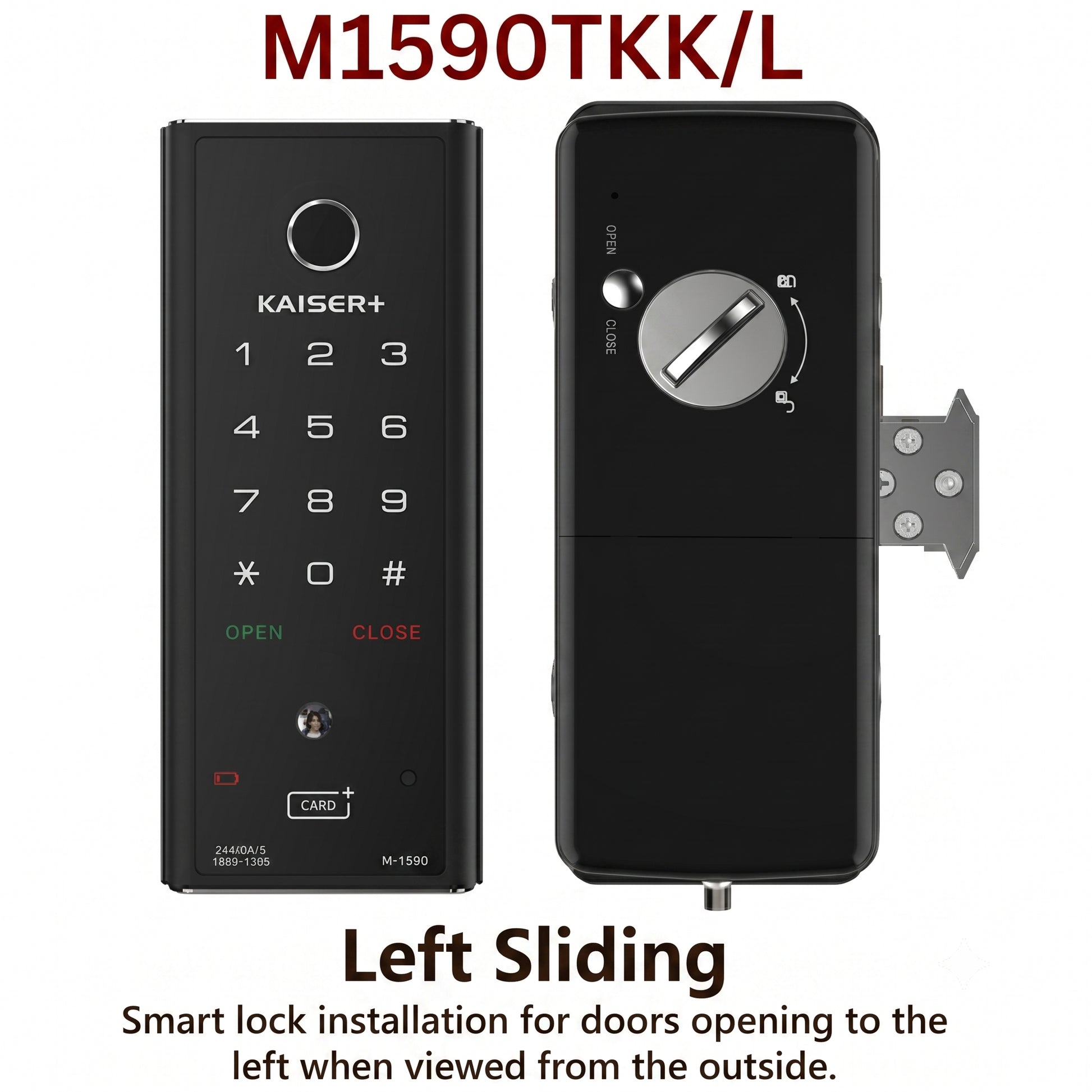

• L = Left Opening

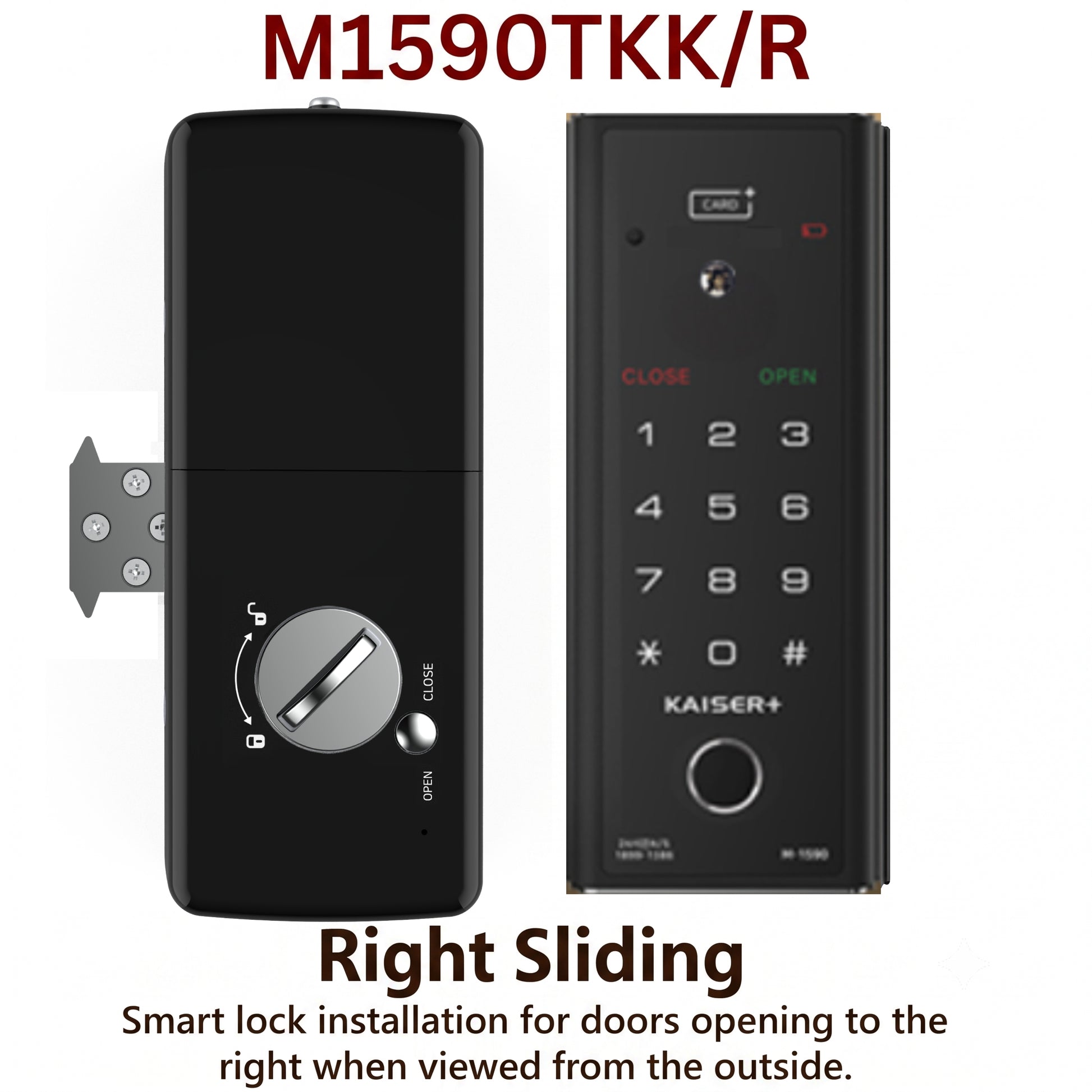

• R = Right Opening

📡 Smart Features

PhonePass+ (Korean App)

Supports Bluetooth (BLE) and Bluetooth + Wi-Fi.

Features:

• Remote Control
• Bluetooth & Wi-Fi Connectivity
• Temporary PIN Code Generation
• Access Log Monitoring

Wi-Fi Box (433MHz)

Compatible App:

• eWeLink

Features:

• Remote Control
• Supports 433MHz Remote Control
• SYNC with KAISER+ HDB Gate Lock

🔗 SYNC System

When paired with a KAISER+ HDB Gate Lock equipped with the optional SYNC Module, the gate lock and main door lock operate together as one system.

Features:

• Unlocking the gate lock automatically unlocks the main door lock.
• One authentication opens both locks simultaneously.
• Provides a more convenient and seamless entry experience.

Notes

• The SYNC function cannot be used together with the Bluetooth (BLE) or Bluetooth + Wi-Fi options.
• A Wi-Fi Box (433MHz) is required to use the SYNC function.

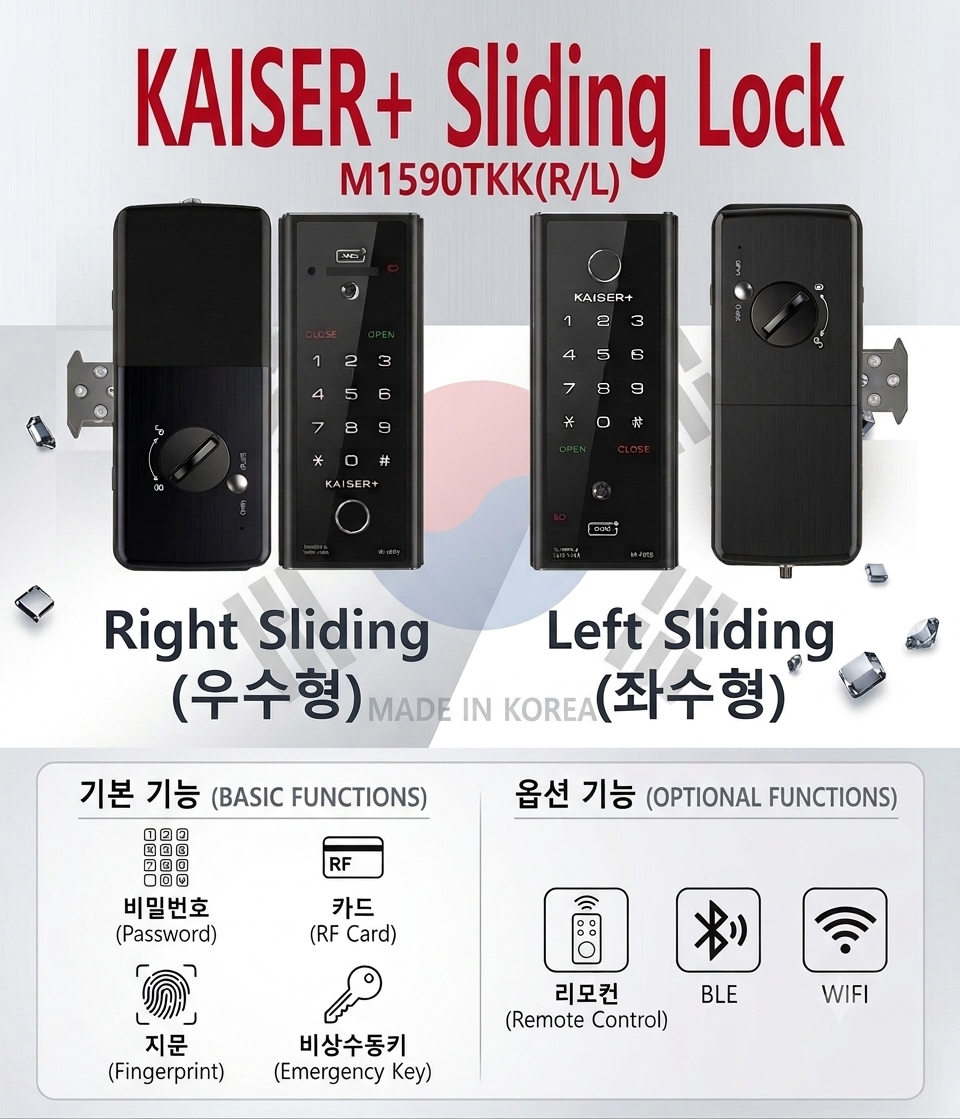

📑 Specifications

Authentication Methods

• PIN Code
• RF Card
• Fingerprint (selected models)
• Mechanical Emergency Key (selected models)

Registration Capacity

• Up to 50 RF Cards
• Up to 100 Fingerprints

🔑 Optional Accessories

• Mechanical Emergency Key (for M1590 Series and above)

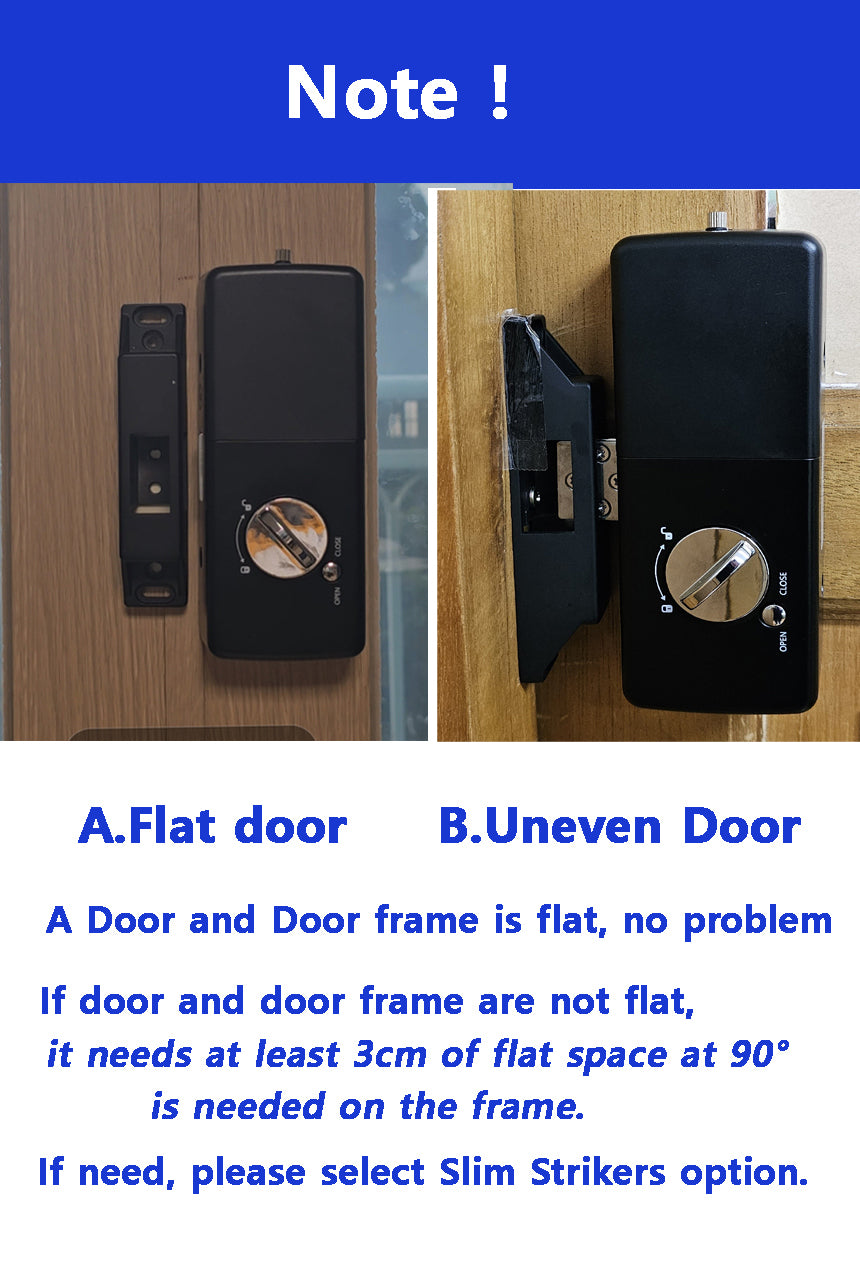

• KAISER+ Slim Strike Plate
