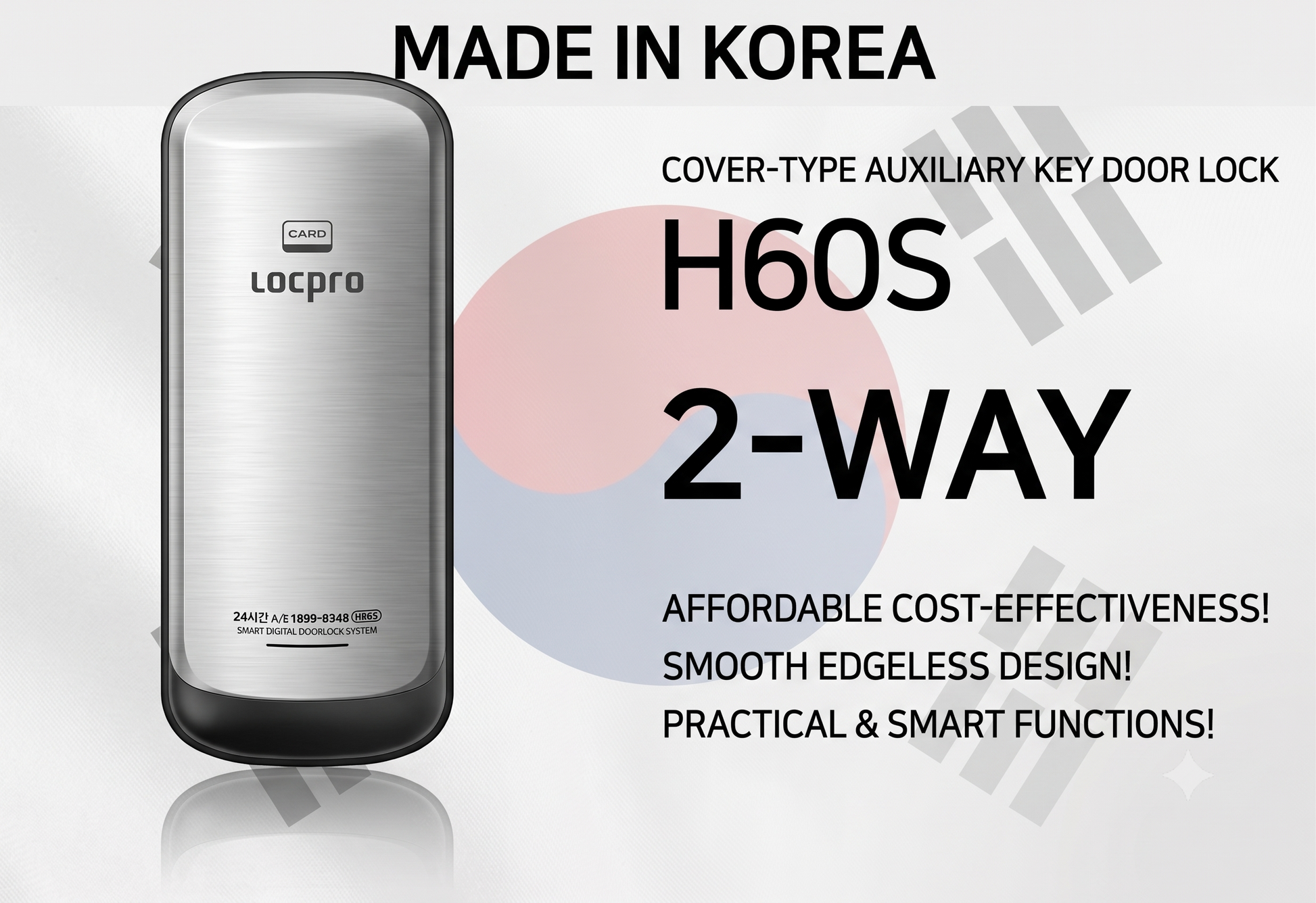

[Horizontal Rim Lock] H60S Digital Smart Rim Lock with PIN, Rf Card- Main Door Swing Door| Made in Korea

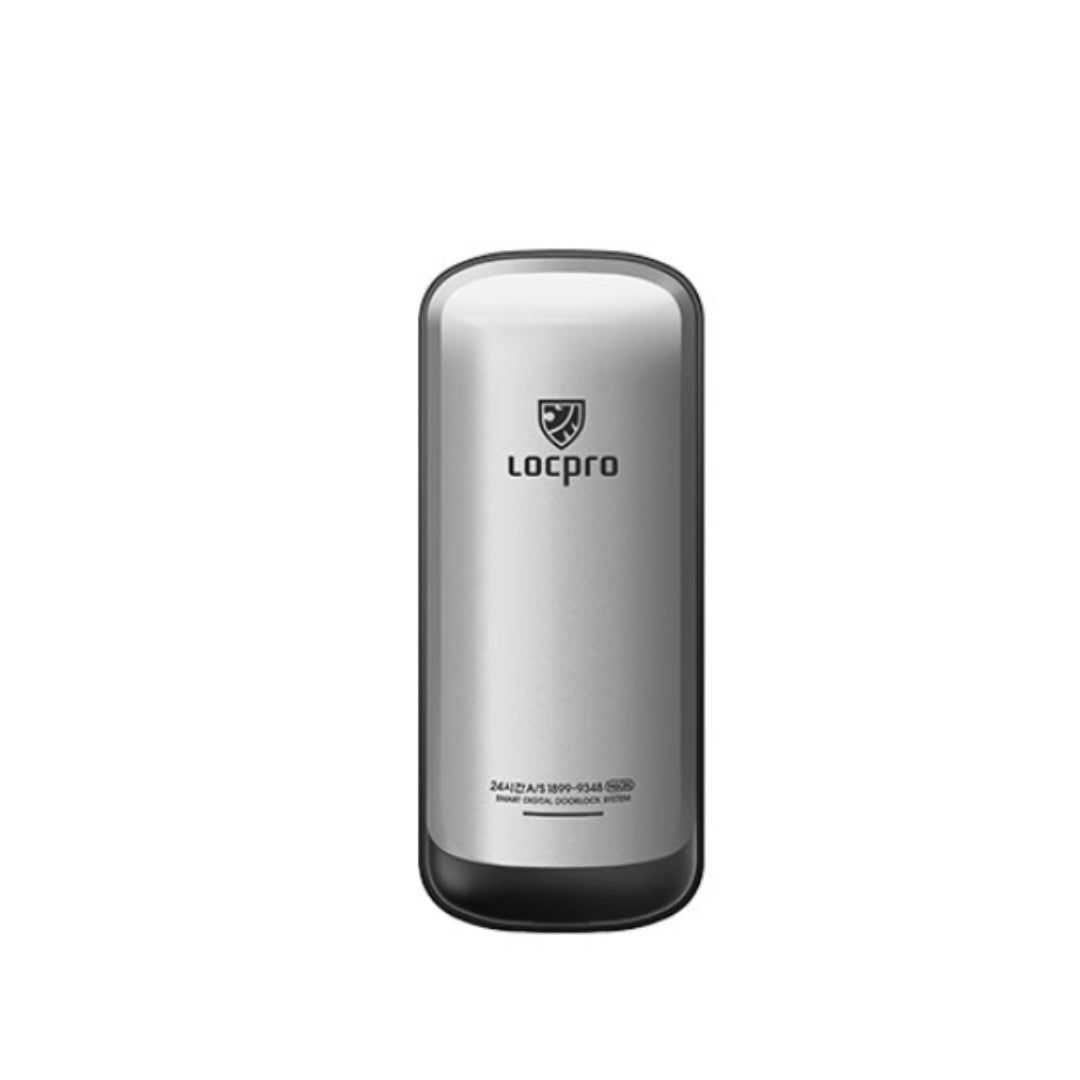

Product Name : H60N ( Silver ) 2Way ( Pin code/ Rf Card )

🔒 1. Design & Appearance Features

• Cover-type Auxiliary Key Door Lock
• H60N: Main PIN-only model (Cost-effectiveness focus, sleek Red color)
• H60S: Main Card Key & PIN model (Premium Silver color)
• Features a soft Edgeless round design that integrates seamlessly with any door.

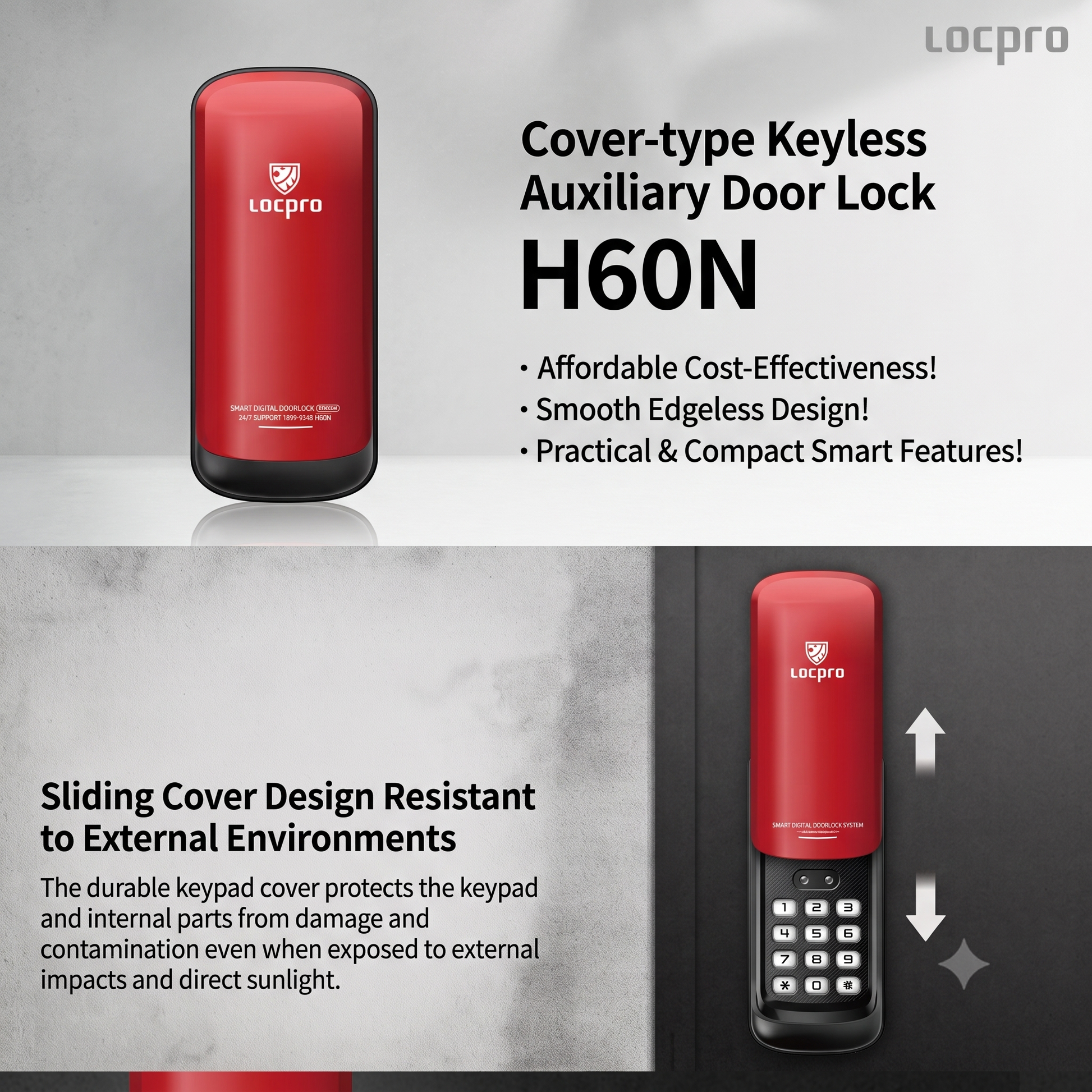

• Sliding Cover Design Resistant to External Environments
• The robustly designed keypad cover protects the keypad from fading, damage, and internal component contamination even when exposed to strong external impacts or direct sunlight (UV rays).

⌨️ 2. Access & Keypad Convenience Features

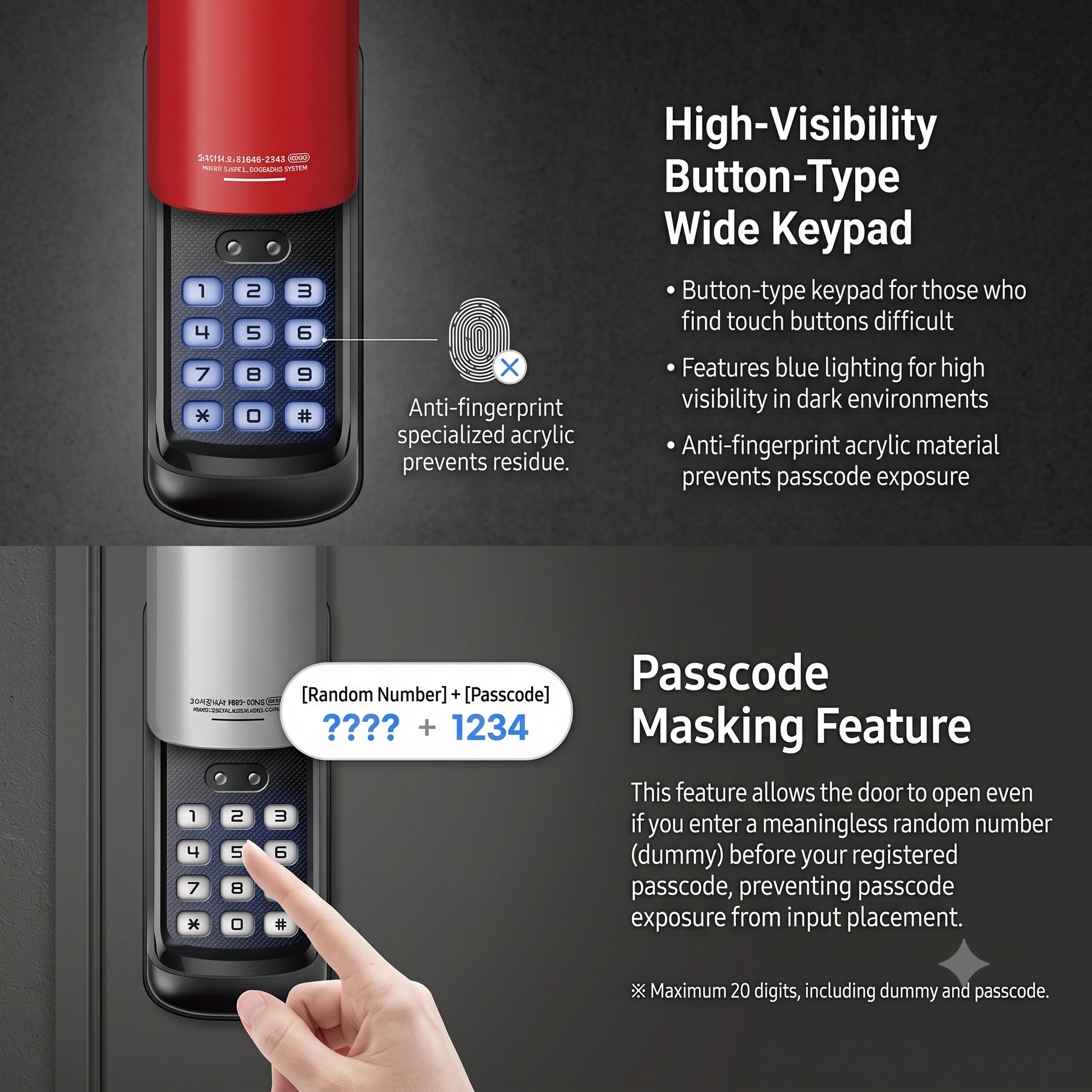

• High-Visibility Button-Type Wide Keypad
• Employs a physical push-button type that is intuitive and easier to press for users who find touch panels unfamiliar or difficult.
• Equipped with a soft Blue Lighting (Backlight) function to ensure the numbers are clearly visible at night or in dark hallways.
• Utilizes special acrylic material that leaves no traces of fingerprints or oil, fundamentally preventing the risk of passcode exposure.
• Passcode Masking Feature (Fake Number Feature)
• If someone is watching or if you are concerned about residual fingerprints, this security function allows you to open the door by entering random numbers (dummy) either before or after your actual passcode in a continuous sequence. (Maximum 20 digits, including fake numbers.)
• Simple & Convenient Card Recognition (H60S Model Exclusive)
• You can open the door instantly by simply touching your registered card key to the front deck without the hassle of raising the keypad cover. This 2WAY (PIN + Card Key) authentication method is the safest and fastest way to gain access without fear of passcode exposure. (Supports registering a large quantity of up to 100 card keys.)

🚨 3. Safety & Alarm Systems

• Intrusion Alarm Function
• When the door is locked, if any attempt is made to forcefully detach or damage the door lock from the outside, the internal sensor immediately detects it and sounds a powerful intrusion alarm of 80dB or more to warn the surroundings.
• Internal Forced Locking Function (Stay At Home Safe Mode)
• This function is used to enhance security after the entire family has returned home. It is activated by pressing the Open/Close button on the internal unit for 3 seconds. Once activated, the door cannot be opened even if the correct PIN or card key is entered from the outside.
• Anti-Prank & Anti-Hacking Function
• If an unregistered PIN or card key is entered incorrectly 5 times or more consecutively, a warning sounds, and all external button recognition and door lock operations are temporarily suspended for 30 seconds.

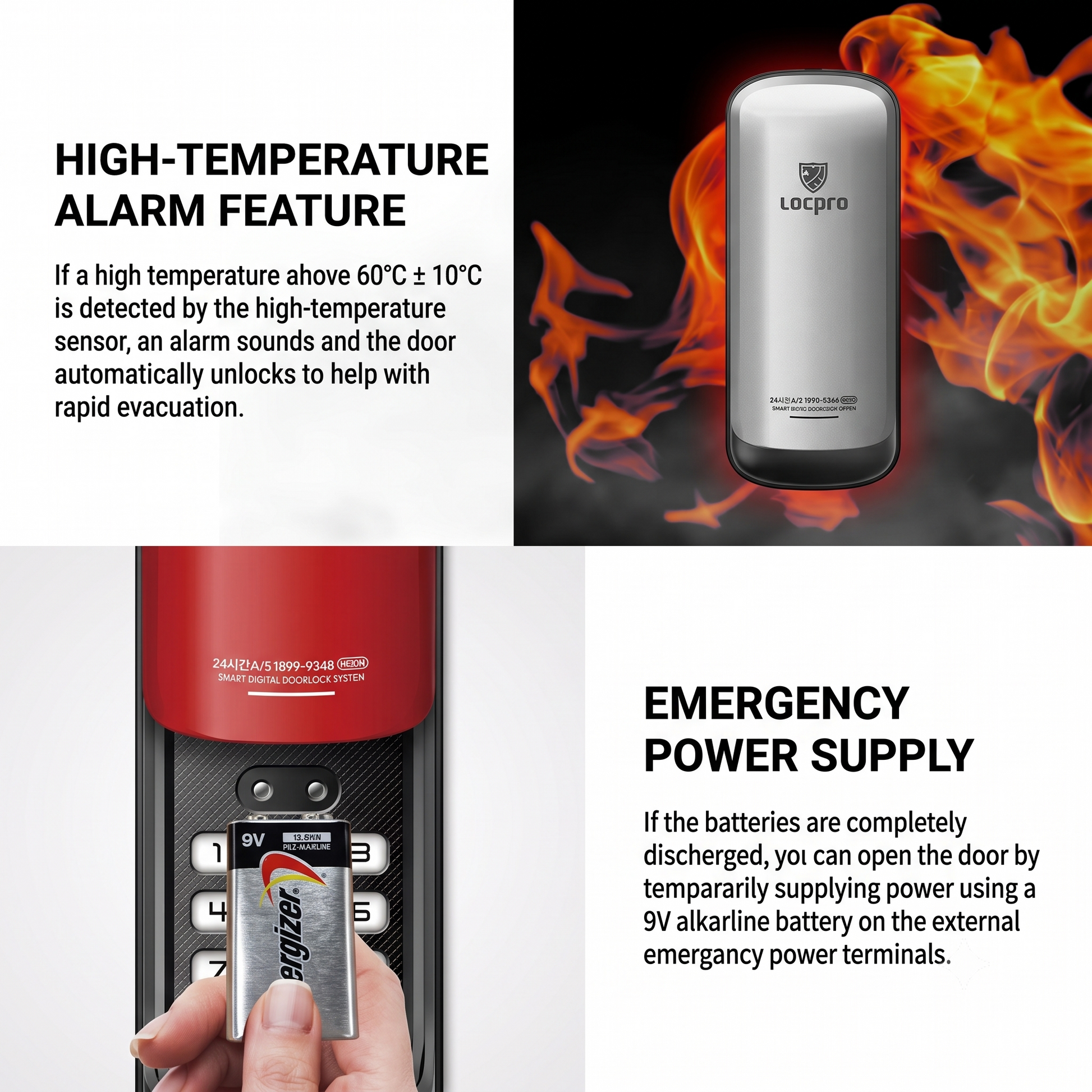

• High-Temperature Detection Alarm & Automatic Opening System (Fire Safety)
• If a fire occurs indoors and the heat sensor detects a high temperature of  or higher, a powerful alarm sounds to assist with evacuation. Simultaneously, to prevent being trapped, the door lock is automatically unlocked to help with a swift escape.

🛠️ 4. Battery & Management Systems

• Emergency Power Supply Function
• This function can be used when the batteries are completely discharged and the lock does not operate from the outside. You can purchase a standard 9V Alkaline Battery from a convenience store and OPEN the door by authenticating with your PIN or card while keeping the battery in contact with the external emergency power supply terminals.
• Battery Replacement Notification
• The door lock constantly monitors its own battery voltage and kindly informs the user of the need for replacement in advance through melodies or buzzer sounds when the time to replace them approaches.
• Etiquette & 8-Step Volume Control Function
• An etiquette mode is available to reduce or mute the operating sounds during access late at night or when a baby is sleeping. The buzzer volume can be finely adjusted to 8 levels from mute to high sound.

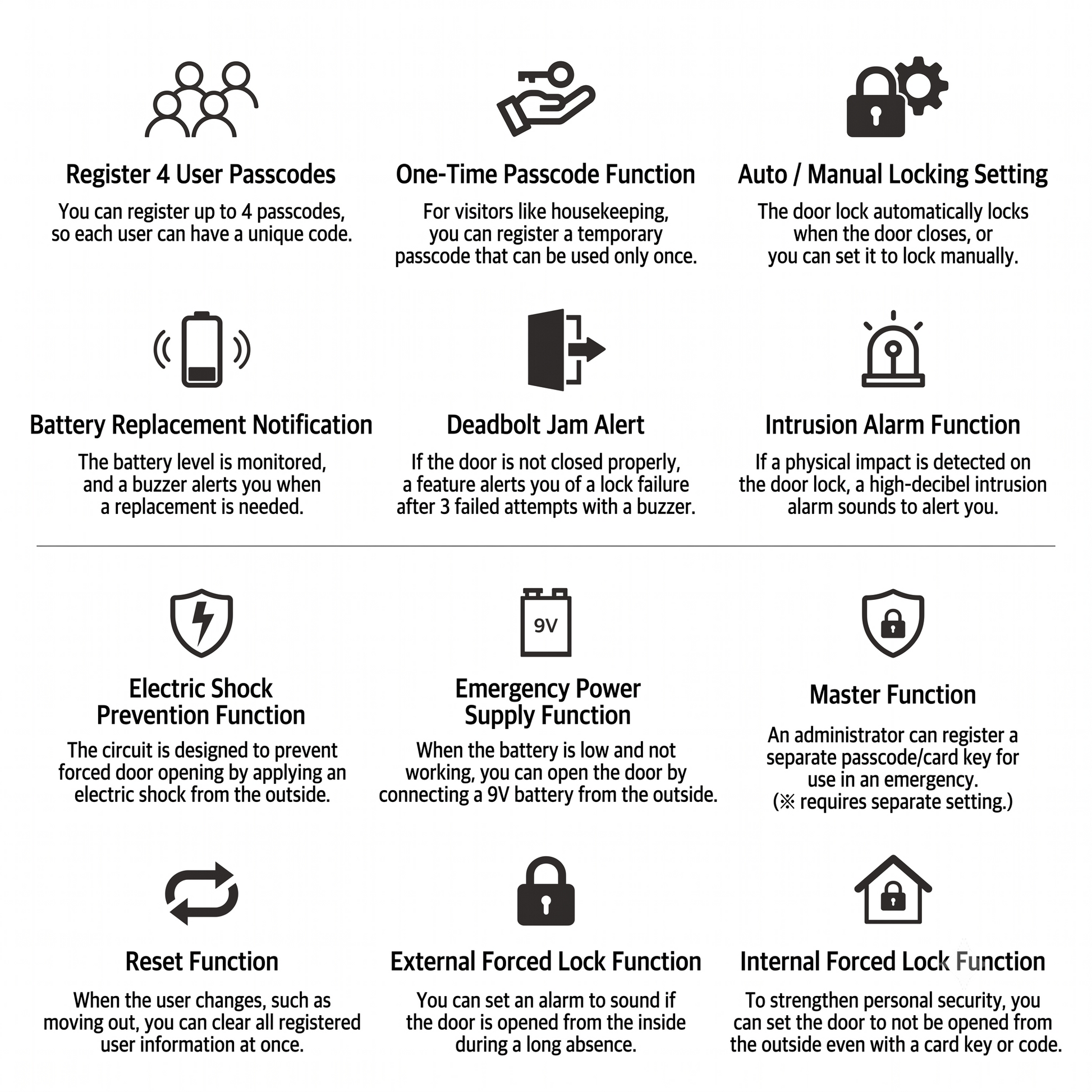

⚙️ 5. Smart Additional Functions

• Register up to 4 User Passcodes: You can set a different passcode for each family member.
• One-Time Passcode (OTP) Function: You can issue a temporary passcode that can be used only once for housekeepers, interior contractors, or visitors.
• Auto / Manual Locking Setting: You can choose 'Auto Lock' mode, where the door locks automatically upon closing, or 'Manual Lock' mode, where the door is locked only when needed, for offices or high-traffic areas.
• Deadbolt Jam Alert: If the door is not perfectly closed and the locking mechanism (deadbolt) is caught, a lock failure is clearly communicated to the user with a sound after 3 failed relock attempts with a buzzer.
• Electric Shock Prevention Function: Features a standard built-in High-Voltage Blocking Safety Circuit to neutralize illegal door opening attempts using high-voltage electric shock devices from the outside.
• Master Function Support: An administrator can register a separate master passcode or master card for overall control in case of an emergency.
• Reset Function: When the user changes, such as when moving in/out, you can safely delete all registered user information at once (master reset).
• External Forced Lock Function: For long periods of absence or business trips, this function maximizes security by sounding an emergency alarm if an intruder who entered through an internal window attempts to open the internal door lock to flee.
